Functional characteristics ▍

u Buckle plate method:Use a heavy hammer to knockGround vibrating plate orSteel plate, test the strata shear wave(S wave), compressed wave(P wave)Wave speed;

u Low frequencyPulse Excellence Cycle Test.

Working principle ▍

Knock on the shock plate on the ground and act underground.OneAfter the impact force, P waves and S waves propagate down along the well wall strata. When the P waves and S waves propagate to the position of the wave detector, the wave detector can convert the initial arrival time and vibration waveform of the P wave and S wave into electrical signals and record them by the instrument.

Test method: This product uses the hammer method to test the shear wave velocity, that is, next to the ground drilling.Place the vibration plate,The size of the general vibrating plateFor25*25*120(Cm), and the load is 400kgLeft and right heavy objects, use positive and negative two-wayWeightThe method of hitting the two ends of the vibration plate to produce positive shear and reverse shear waveforms, so as to calculate the wave velocity

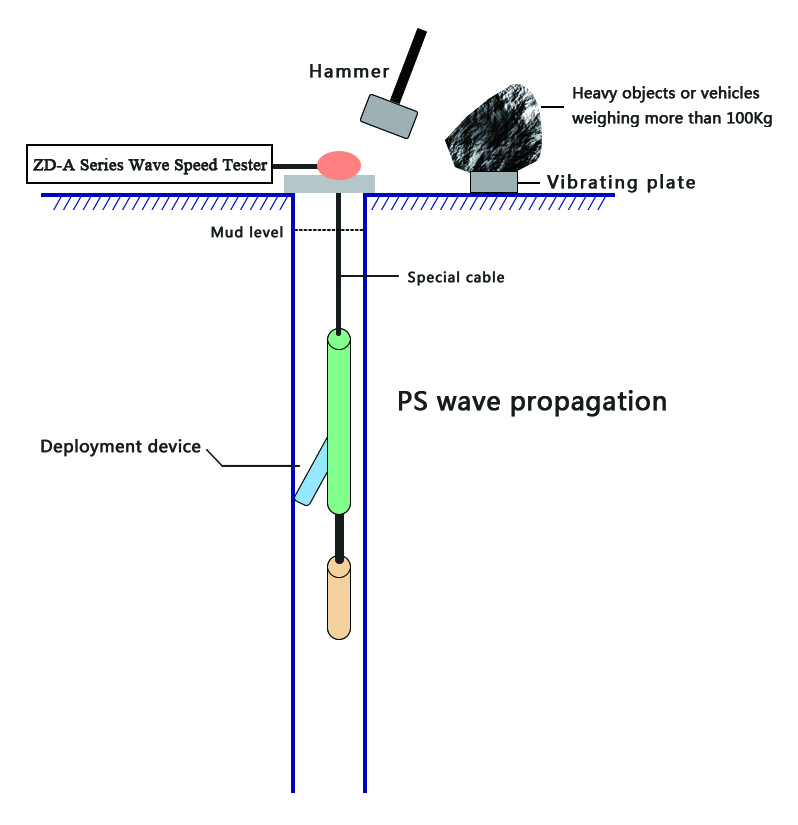

Working diagram

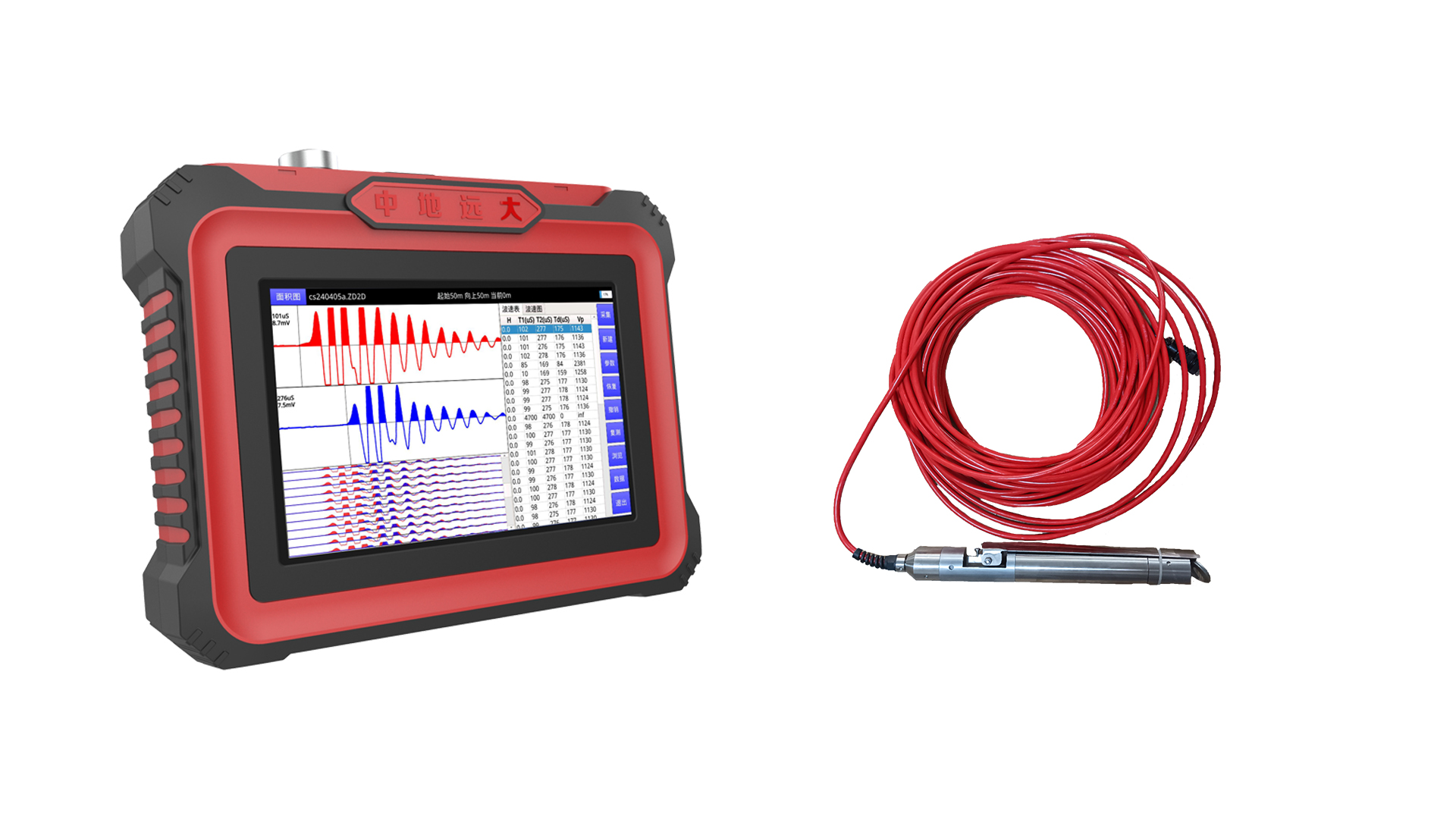

KB30Buckle plate probe ▍

KB30Buckle plate probe: adopts a three-component wave detector, and the electromagnetic automatic suction method opens the bracket. Any depth in the hole can be opened by the host button control at any time, non-mechanical opening. The probe is not too resistant to mud, so the probe is not placed.Open the bottom of the holeBracket, avoid repeatedly operating and placing the probe, which is a waste of time.Avoid mechanical opening. The probe must be placed at the bottom of the hole, relying on the machine.Force to openBracket.

Geotechnical wave speed test ▍

Adobe PhotoshopWay ▍

Collection parameters ▍

System Parameters ▍

Intellectual ability CloudParameters ▍

KB30Buckle plate probe ▍

ZD-M200Ground pulsation sensor (low-frequency wave detector)(Optional)  ▍

ZDMSZhongdiyuan large wave velocity test and analysis software(Abbreviation: Analysis Software) ▍

l ZDMSZhongdiyuan large wave speed test and analysis software is equipped with independent intellectual property registration code.1Set ;

l AnalyseSoftware supportWin7/8/9/10/11, support Chinese and English, compatible with wireless automatic update and upgrade function;

l The analysis software has a waveform diagram,Curve chart, wave chart, data table, grayscale chart, including the effect of floor plan and profile.

l The analysis software hasAutomatic high and low channel filtering, waveform fitting, automatic search for initial value, waveform curve color customization settings;

l The analysis software has waveform profile, floor plan andHV(D-S),HV((D-T),HV-2DCurve export function;

l Analysis softwareOutput report supportMicrosoft Office(Word,Excel),Word processing system,Text file,Bmp,Jpg,Pdf,Seg,Computer-aided designEqualNineKind of format;

l Analysis softwareEquivalent speed supports geotechnical specifications20m, railway norms25 meters, with automatic calculation of layer-by-layer equivalent velocity value andArbitrary depth settingFunction;

l Analysis softwareWaveform diagram export supports single-channel waveform diagram, dual-channel waveform diagram andHV.The simultaneous export method of curves;

l Analysis softwareThe data waveform curve supports data, wave speed,HV.Curve on the same screen display function;

l Analysis softwareThe report header supports the free deletion and addition of project name, drilling number, drilling height, tester, etc.;

l Analysis softwareFruitionFigure supportStrata division, strata description, strata legend, height, original curve,HV.Curve, time distance (HT) Curves, bar charts and other custom functions can be freely selected according to the actual situation;

l Analysis software output supports customizationPage header, footer, page settings,Page support selectionA4,A3,A2;

l Analysis softwareOutput supports raw data, data summary, engineering information, time, Poisson ratio µ,EDimension,GenerationDimension,HV.Free curve setting function;

l The waveform setting of the analysis software supports each wave velocity time click display time, positive and reverse settings, and one or two waveforms are displayed in the same window.
