Special functions ▍

u Waveform retest

u Waveform filtering

u Voice announcement

Functional characteristics ▍

u Excitation in the holeMethod:Hole-in-hole excitation method (spontaneous self-receiving)ApproachHoleInspire,HoleReceive in, noneGround vibration source is required.,Accurate testShear wave(S wave)Wave speed;

u Low frequencyPulse Excellence Cycle Test.

Working principle ▍

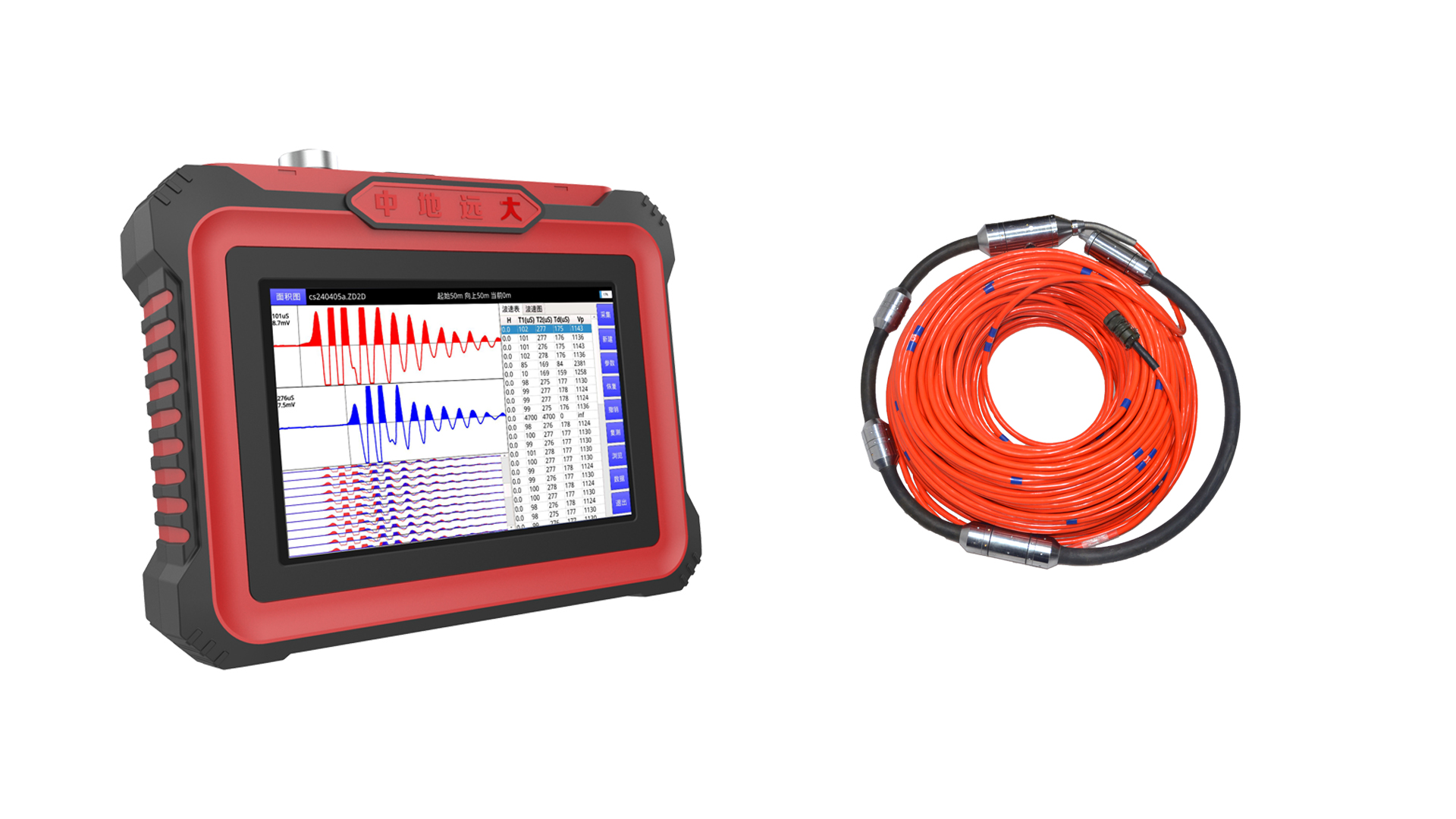

ZD-A6The in-hole excitation wave velocity tester is a method to determine the wave velocity of the strata where the drilling is located by using the detector placed in the drilling to receive the arrival time of the S wave signal from the seismic source.

In the drillingTake the well fluid asThe coupling agent uses an electromagnetic excitation source perpendicular to the well wall to exert a momentary impact force, which produces two types of mass point vibration in the well wall strata. One is that the direction of mass point vibration is perpendicular to the well wall and propagates along the direction of the well wall, which is called S wave (shear wave, transverse wave); the other is that the direction of mass point vibration is the same as the direction of propagation, called P wave ( Compression wave, longitudinal wave).

The wave detector receives the vibration signal of the S wave and converts it into an electrical signal, and then transmits it to the computer. After processing the data of the signal, the computer uses the two-channel correlation analysis method to automatically calculate the time difference between the propagation of the S wave between the two wave detectors, thus calculating the propagation speed of the S wave between the two channels.

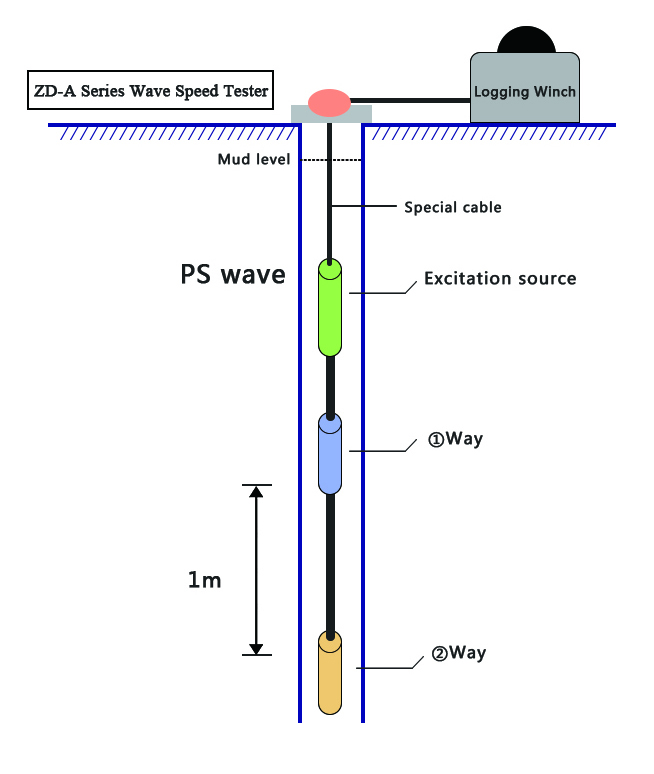

Working diagram

Well logging probe ▍

ZF110Self-excitation probe: the upper part is the excitation source, and the lower part is two receiving detectors. The electromagnetic excitation source is perpendicular to the well wall. The momentary impact force is used to collect the receiving mass point vibration direction perpendicular to the well wall, and the shear wave (S wave, transverse wave) propagates along the direction of the well wall.

Geotechnical wave speed test ▍

Main engineParameters ▍

Collection parameters ▍

SystemParameters ▍

Intellectual abilityCloudParameters ▍

ZF110Self-exciting probe ▍

ZD-M200Ground pulsation sensor (low-frequency wave detector)(Optional) ▍

Manual self-integrated winch: (optional) ▍

ZDMSZhongdiyuan large wave velocity test and analysis software(Abbreviation: Analysis Software) ▍

l ZDMSZhongdiyuan large wave speed test and analysis software is equipped with independent intellectual property registration code.1Set;

l AnalyseSoftware supportWin7/8/9/10/11, support Chinese and English, compatible with wireless automatic update and upgrade function;

l The analysis software has a waveform diagram,Curve chart, wave chart, data table, grayscale chart, including the effect of floor plan and profile.

l The analysis software hasAutomatic high and low channel filtering, waveform fitting, automatic search for initial value, waveform curve color customization settings;

l The analysis software has waveform profile, floor plan andHV(D-S),HV((D-T),HV-2DCurve export function;

l  Analysis softwareOutput report supportMicrosoft Office(Word,Excel),Word processing system,Text file,Bmp,Jpg,Pdf,Seg,Computer-aided designEqualNineKind of format;

l Analysis softwareEquivalent speed supports geotechnical specifications20m, railway norms25 meters, with automatic calculation of layer-by-layer equivalent velocity value andArbitrary depth settingFunction;

l Analysis softwareWaveform diagram export supports single-channel waveform diagram, dual-channel waveform diagram andHV.The simultaneous export method of curves;

l Analysis softwareThe data waveform curve supports data, wave speed,HV.Curve on the same screen display function;

l Analysis softwareThe report header supports the free deletion and addition of project name, drilling number, drilling height, tester, etc.;

l Analysis softwareFruitionFigure supportStrata division, strata description, strata legend, height, original curve,HV.Curve, time distance (HT) Curves, bar charts and other custom functions can be freely selected according to the actual situation;

l Analysis software output supports customizationPage header, footer, page settings,Page support selectionA4,A3,A2;

l The output of analysis software supports original data, data summary, engineering information, time, Poisson ratio µ,EDimension,GenerationDimension,HV.Free curve setting function;

l The waveform setting of the analysis software supports each wave velocity time click display time, positive and reverse settings, and one or two waveforms are displayed in the same window.

Standard configuration ▍
