Overview ▍
Our companySpecializing in testing instruments,Survey instruments,Object detection instrumentTaxiTechnical typeEnterprise,Focus on the research and development of drilling and well logging series products,And apply for a variety of patents and soft works, independently innovate the vibration method in the hole, and independently research and developThe hole is excited.Oscillation wave velocity tester, engineering survey workstation,Comprehensive wave velocity tester, snap plate wave velocity tester, acoustic well logging instrument and other survey equipment. The ZD-A series is a new upgraded product of the fourth generation. In addition to the functions of the third generation of products, the Linux system also has a series of intelligent cloud and accurate measurement functions.
Scope of application ▍
Applicable to engineering survey rock soil layer PS wave test; classification of site soil type and site category; engineering geological exploration, railway survey, earthquake evaluation, geological disaster monitoring, water conservancy and hydropower exploration and design and other fields related to the study of strata wave velocity.
According to the standard ▍
u Geotechnical Engineering Survey Specification···GB50021-2009
u "Building Seismic Design Specification"...GenerationB50011-2010
u Specification for Testing Foundation Dynamic Characteristics···· GB/T50269-2015
u "Water Conservancy and Hydropower Engineering Exploration Regulations"···SL326-2005
u "Specifications for Geological Survey of Highway Engineering"···JTG C20-2011
u "Specifications for Geological Survey of Railway Engineering"····TB 10012-2007
u 《Soil survey specifications for water transportation projects》····JTS 133-2013
u 《General specifications for engineering survey》····GenerationB55017-2021
ProductPatentCatch upSoftware copyright ▍
u A kind of in-hole excitation wave velocity tester Patent number: ZL 2020 23093787.0;
u Wave velocity test analysis software V1.03 Registration number: 2020SR0123721.
Special functions ▍
u Waveform retest
u Waveform filtering
u Voice announcement
Functional characteristics ▍
u Excitation in the holeMethod:Spontant and self-receiving,SynchronizeTest drilling"Soil layer"Shear wave (transverse wave/S wave) and compression wave (contitudinal wave/P wave);
u In-hole excitation method:Spontant and self-receiving, synchronizationTest drilling"Rock"Shear wave (transverse wave/S wave) and compression wave (contitudinal wave/P wave);
u Rock bodyRock massWave speed;Low frequencyPulse Excellence Cycle Test.
Working principle ▍
ZD-A18The in-hole excitation wave velocity tester is a method of using the detector placed in the drilling hole to receive the arrival time of the S wave and P wave signals from the shock source to determine the wave velocity of the strata where the drilling is located.
In the drillingTake the well fluid asThe coupling agent uses an excitation source perpendicular to the well wall to act on a momentary impact force, which produces two types of mass point vibration in the well wall strata. One is that the direction of mass point vibration is perpendicular to the well wall and propagates along the direction of the well wall, which is called S wave (shear wave, transverse wave);The other is that the direction of vibration of the mass point is the same as the direction of propagation, which is called P wave (compression wave, longitudinal wave).

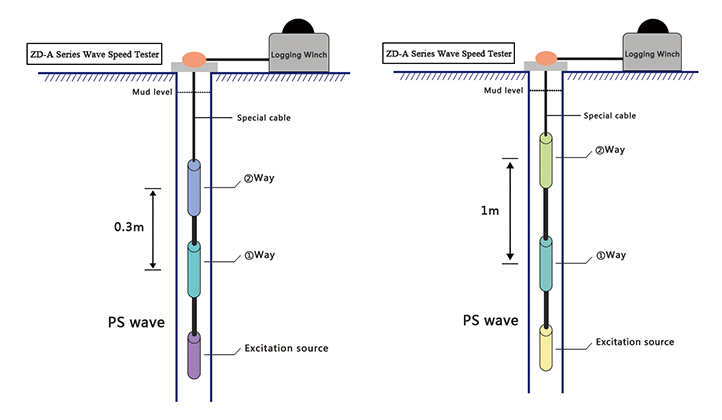

Working diagram

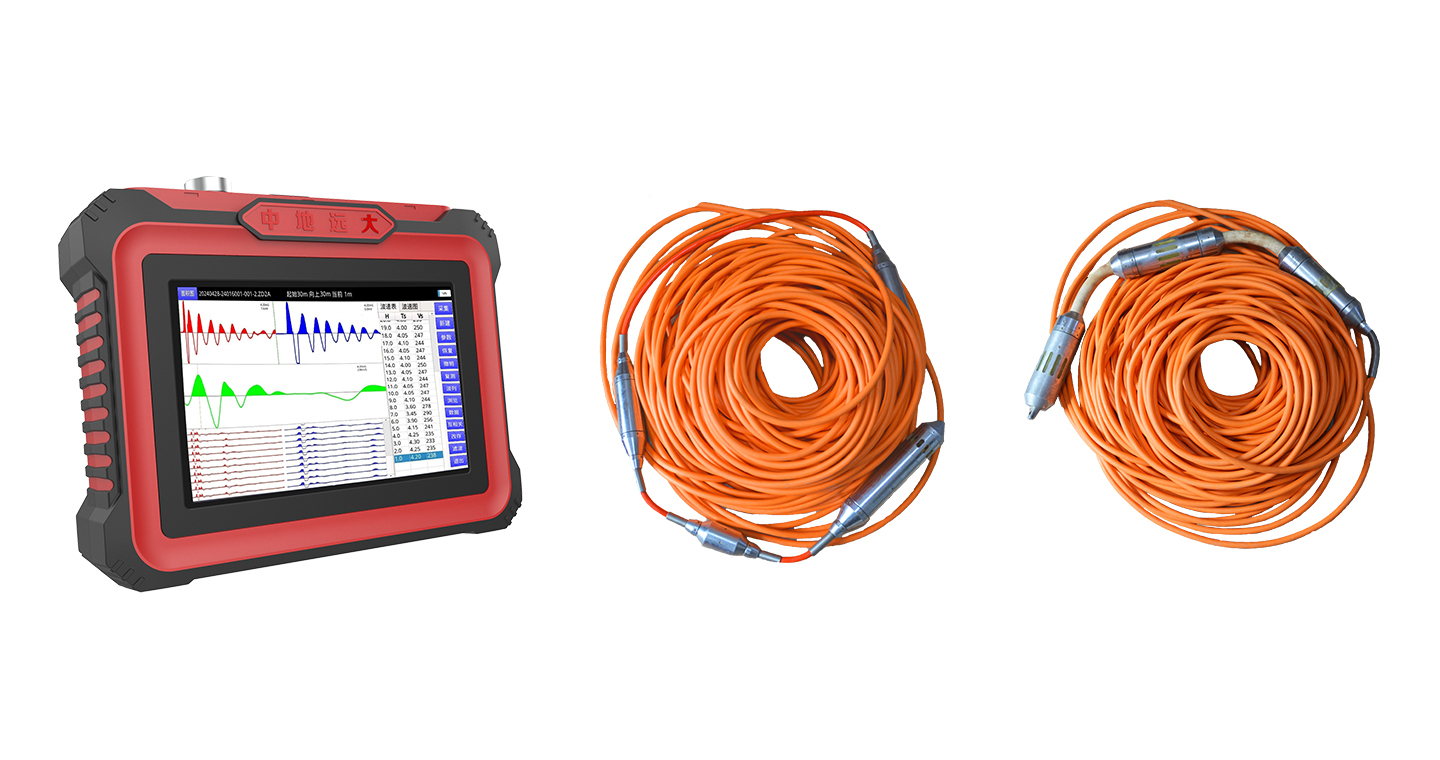

Well logging probe ▍
ZD-R100 AndZD-Small size100Full-wave column probe: Adopt the upper part asTwo receivers, the lower part isExciting source, the excitation source is perpendicular to the well wall and acts on the momentary impact force, and the direction of the vibration of the receiving mass point is perpendicular to the well wall, along the wellThe shear wave (S wave, transverse wave) propagating in the direction of the wall, collect the shear wave (P wave, longitudinal wave) that is parallel to the direction of the vibration of the receiving mass point parallel to the well wall and propagates along the direction of the well wall.
Geotechnical wave speed test ▍
PS/Test method | Rock and soil in the holeParking lot·Small sizeWave test | ||||
Detector (probe) | Soil layer | Rock | |||
Specifications Model | Shear wave | Compression wave | Horizontal wave | Longitudinal wave | |
ZD-S6 | ZD-F100 | In-hole excitation method | In-hole excitation method | In-hole excitation method | In-hole excitation method |
ZD-A18 | ZD-S100 ZD-R100 | In-hole excitation method | In-hole excitation method | In-hole excitation method | In-hole excitation method |
ZD-A16 | ZD-S100 | In-hole excitation method | In-hole excitation method | -- | -- |
ZD-A14 | ZD-R100 | -- | -- | In-hole excitation method | In-hole excitation method |
ZD-A12 | ZF110 ZD-R100 | In-hole excitation method | -- | In-hole excitation method | In-hole excitation method |
ZD-A10 | ZF110 ZB100 KB30 | In-hole excitation method, buckle plate method | Buckle plate method | -- | In-hole excitation method |
ZD-A8 | ZF110 KB30 | In-hole excitation method, buckle plate method | Buckle plate method | -- | -- |
ZD-A6 | ZF110 | In-hole excitation method | -- | -- | -- |
ZD-A4 | ZF55 | In-hole excitation method | -- | -- | -- |
ZD-A2 | KB30 | Buckle plate method | Buckle plate method | -- | -- |
ZD502 | ZB100 | -- | -- | -- | In-hole excitation method |
Main engineParameters ▍
Functional module | Measure the soil layer by the excitation method in the holeShear waveAnd compressed wave, The longitudinal and transverse waves of rocks are measured by the excitation method in the hole.,Low frequencyEarthPulsation | Sensor type | Low frequencyWave Detector,High frequencySensor |
Excitation method | Electromagnetic excitation, sound wave emission | Trigger method | Internal trigger,Pulse trigger |
Sampling method | spontaneous and self-receiving | Number of channels | 10 |
A/DCentigradeAccuracy | 16 bits (24The position can be selected) | DocumentFormat | zd2g、dwg、seg、txt |
Operating system | Linux4.1.15 embedded system | Operation mode | touch screen, button |
Display type | IPSAnd capacitive touch screen | LCD screen mode | 10.1Inch high-brightness LCD screen, resolution 1280*800 |
Main controlProcessor | core 1GHz, CPU quad-core, memory 1GB DDR3 | Language type | support Chinese and English |
Protection level | IP65 (waterproof and dustproof) | Storage capacity | 32G (1 millionWaveform) |
Power display | real-time display of power, accuracy1% | Automatic saving | supportMeter-by-meter dataVoluntary, manualPreserve |
Battery life | More than16H | Power supply mode | built-in 12V lithium battery (replaceable and disassembled), external220V AC/DC |
Parameters of lithium battery | ≥10400mAh/108Wh,200×78×25(Mm) | Voltage and power consumption | 12V, 7W |
Working temperature | -10℃～+50℃ | Storage temperature | -20℃～+60℃ |
Shell material | ABachelor of Science+TPU; | Main engineVolumetric weight: | 330×277×88（mm）、3.5Kg |
Main engineProtectBox | 520×420×225（mm）、4.5Kg(Empty box) |
Collection parameters ▍
Sampling frequency | 10Hz～20mHz | Sampling points(Depth) | 512~409600(512, 1024, 2048, 4096, 8192, 16384, 32768, 65536, 102400, 204800, 409600) |
Sampling interval | 0.05μs~100ms(1μs,2μs,4μs, 8 μs, 10μs, 20μs, 50μs, 100μs，200μs, 500μs, 1ms, 2ms, 5ms, 10mse, 20ms, 50ms,100ms) | Sound-time accuracy | 0.05μs |
Measuring point spacing | 0.1m、0.2m、0.5m、1m、2m、5m optional | Road spacing | 0.2m、0.3m、0.5m、1moptional |
Excitation pulse width | 1000μs、2000μs、3000μs |
