Special functions ▍

u Waveform retest

u Waveform filtering

u Voice announcement

Functional module ▍

u Excitation in the holeMethod:Hole-in-hole excitation method (spontaneous self-receiving)ApproachHoleInspire,HoleReceive in, noneGround vibration source is required., accurately testthe shear waveWave speed(S wave);

u Buckle plate method:Use a heavy hammer to hit the ground vibration plate or steel plate to test the shear wave of the stratum.(S wave), compressed wave(P wave)Wave speed;

u Low-frequency pulsation excellence cycle test; Lateral pressure method to measure the pile.

Working principle ▍

The in-hole excitation type is a method of using the wave detector placed in the drilling to receive the arrival time of the S wave signal from the seismic source to determine the wave velocity of the strata where the drilling is located.

The buckle plate method isKnock on the shock plate on the ground, and after exerting an impact force on the underground, there will be a P wave along the strata of the well wall.And the S wave propagates down. When the P wave and S wave propagate to the position of the wave detector, the wave detector can convert the initial time and vibration waveform of the P wave and S wave into electrical signals and record them by the instrument. The hammering method is used to test the shear wave velocity, that is, the vibration plate is placed next to the ground drilling. The general size of the vibration plate is25*25*120(Cm), and the load is 400kgThe left and right heavy objects are hammered at both ends of the positive and negative two-way hammering plate, so as to produce positive shear and reverse shear waveforms, so as to calculate the wave velocity.

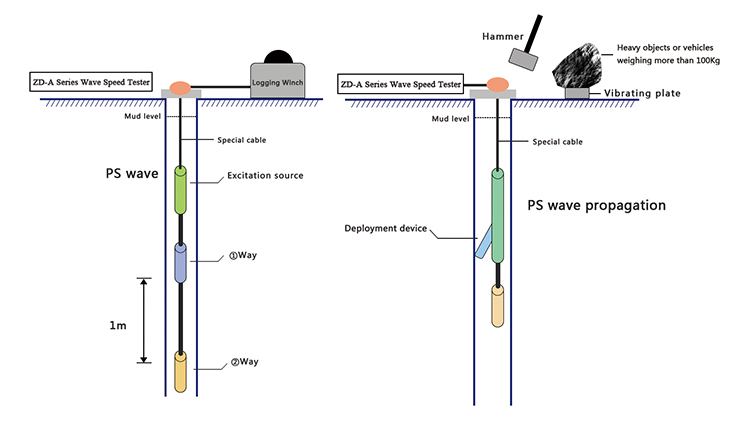

Working diagram

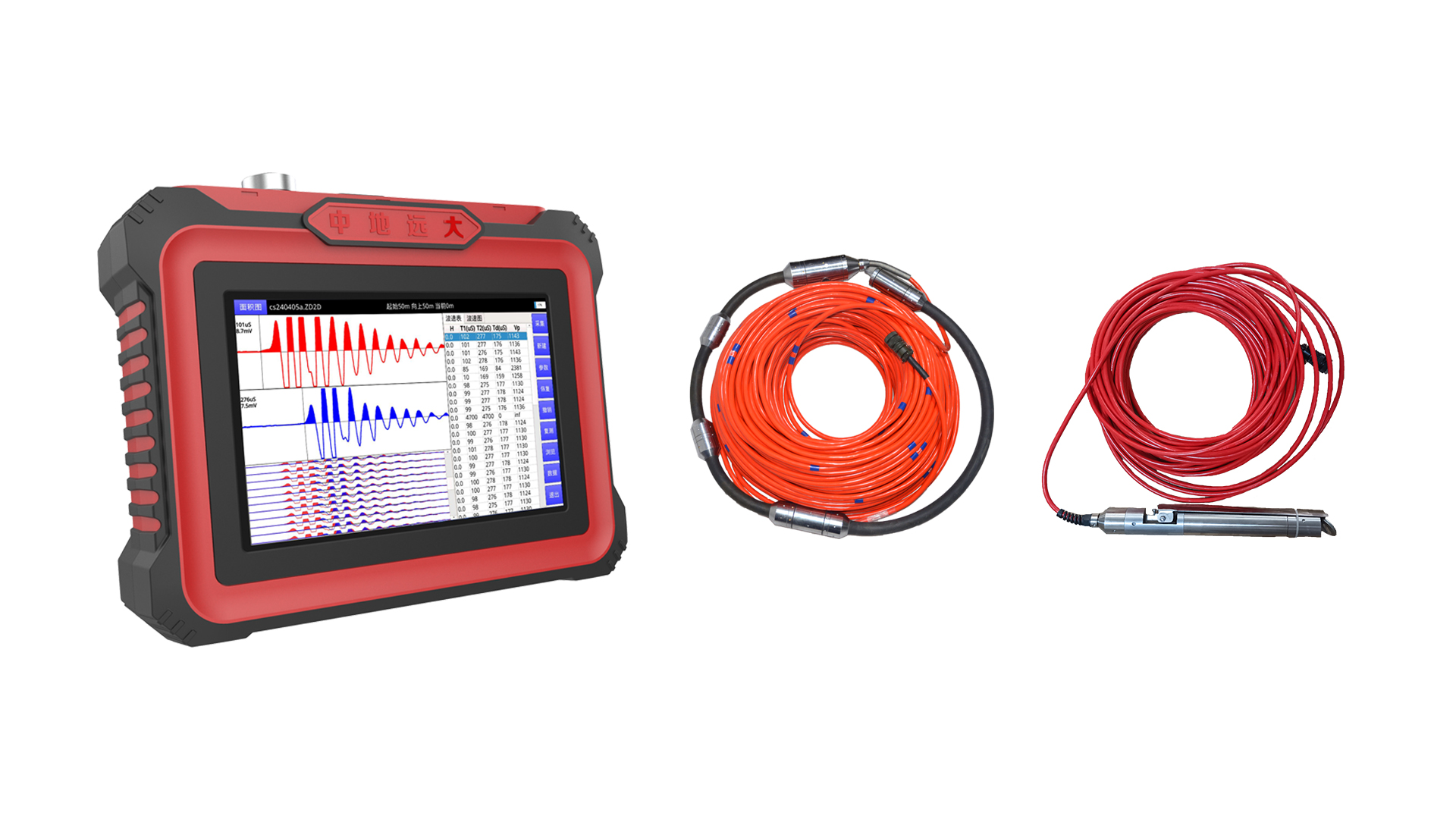

Well logging probe ▍

ZF110Self-excitation probe: the upper part is the excitation source, and the lower part is two receiving detectors. The electromagnetic excitation source is perpendicular to the well wall. The momentary impact force is used to collect the receiving mass point vibration direction perpendicular to the well wall, and the shear wave (S wave, transverse wave) propagates along the direction of the well wall.

KB30Buckle plate probe: adopts a three-component wave detector, and the electromagnetic automatic suction method opens the bracket. Any depth in the hole can be opened by the host button control at any time, non-mechanical opening. The probe is not too resistant to mud, resulting in the fact that the probe is not placed at the bottom of the hole to open the bracket, avoiding repeated operation and placing the probe, and wasting time.To avoid mechanical opening, the probe must be placed at the bottom of the hole and the bracket must be opened by mechanical force.

Geotechnical wave speed test ▍

Main engineParameters ▍

Collection parameters ▍

SystemParameters ▍

Intellectual abilityCloudParameters ▍

ZF110Self-exciting probe ▍

KB30Buckle plate probe ▍

ZD-M200Ground pulsation sensor (low-frequency wave detector)(Optional) ▍

Manual self-integrated winch: (optional) ▍

ZDMSZhongdiyuan large wave velocity test and analysis software(Abbreviation: Analysis Software) ▍

l ZDMSZhongdiyuan large wave speed test and analysis software is equipped with independent intellectual property registration code.1Set;

l AnalyseSoftware supportWin7/8/9/10/11, support Chinese and English, compatible with wireless automatic update and upgrade function;

l The analysis software has a waveform diagram,Curve chart, wave chart, data table, grayscale chart, including the effect of floor plan and profile.

l The analysis software hasAutomatic high and low channel filtering, waveform fitting, automatic search for initial value, waveform curve color customization settings;

l The analysis software has waveform profile, floor plan andHV(D-S),HV((D-T),HV-2DCurve export function;

l Analysis softwareOutput report supportMicrosoft Office(Word,Excel),Word processing system,Text file,Bmp,Jpg,Pdf,Seg,Computer-aided designEqualNineKind of format;

l Analysis softwareEquivalent speed supports geotechnical specifications20m, railway norms25 meters, with automatic calculation of layer-by-layer equivalent velocity value andArbitrary depth settingFunction;

l Analysis softwareWaveform diagram export supports single-channel waveform diagram, dual-channel waveform diagram andHV.The simultaneous export method of curves;

l Analysis softwareThe data waveform curve supports data, wave speed,HV.Curve on the same screen display function;

l Analysis softwareThe report header supports the free deletion and addition of project name, drilling number, drilling height, tester, etc.;

l Analysis softwareThe result map supports strata division, strata description, strata legend, height, original curve,HV.Curve, time distance (HT) Curves, bar charts and other custom functions can be freely selected according to the actual situation;

l Analysis software output supports customizationPage header, footer, page settings,Page support selectionA4,A3,A2;

l Analysis softwareOutput supports raw data, data summary, engineering information, time, Poisson ratio µ,EDimension,GenerationDimension,HV.Free curve setting function;

l The waveform setting of the analysis software supports each wave velocity time click display time, positive and reverse settings, and one or two waveforms are displayed in the same window.

Standard configuration ▍
